PAPER ROLL PROTECTOR ® - CPP60 - WITH RADIUS
Veltkamp is manufacturer of the CPP60 corner protector
Developed in collaboration with the leading paper mills
for a safe and damage free vertical transport of rolls of paper
Certified by DNVGL and Dekra
Veltkamp is the preferred supplier of the leading paper mills
| Product | Paper Roll Protector® |
| Type | CPP60 |
| Article Number | 6.045770 |

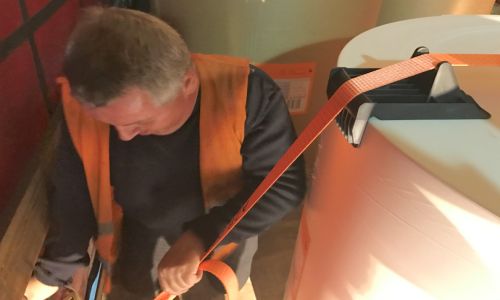

| Specific Application | Especially for the vertical transport of paper coils |
| Prevents damage to the edges of the paper coils, even when tensioning the ratchets tie down too tight (more than 50 kgf) | |
| Approved by the leading paper mills | |
| K-factor | 1.9 |

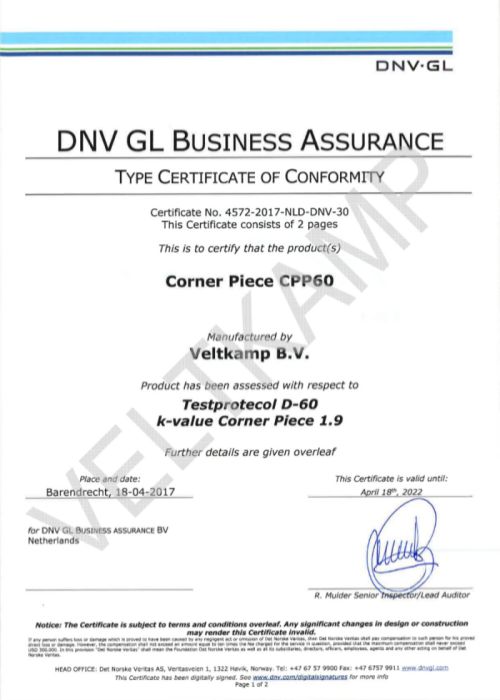

| Certificate DNVGL | 4572-2017-NLD-DNV-30 |

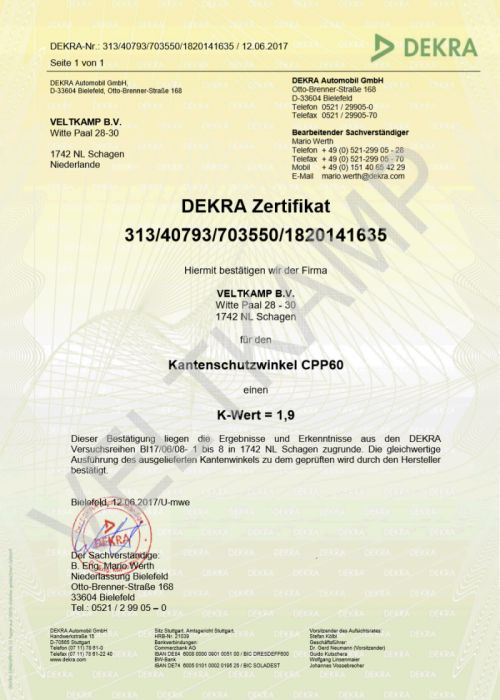

| Certificate Dekra | 313/40793/703550/1820141635 |
| For a lashing width up to | 2.36 inches / 60 mm |
| Width corner piece | 5.51 inches / 140 mm |
| Length side panels | 6.89 / 2.36 inches / 175 mm / 60 mm |
| Quantity per box | 72 pcs |
| Boxes per pallet | 25 boxes |
| Quantity per pallet | 1800 pcs |
| More environmentally friendly packaging | 736 pieces in a cardboard pallet box = article number 6.045770P |
| Material | Recycled Polypropylene Copo |
| Weigth per box | 0.57 pounds / 0.26 kg |
| Weight pallet, incl. pallet | 1080 pounds / 490 kg |
 |
 |
 |
|
 |
 |
 |

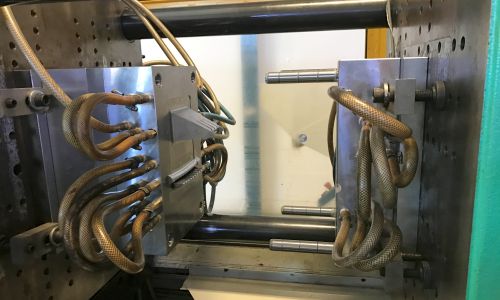

Injection molding of the CPP60S
