Veltkamp
CARGO CHOCK ® - CC125
  • Engineering and manufacturing by Veltkamp
  • Developed in collaboration with Stora Enso OYj
  • For safe and damage-free transport of horizontal rolls of paper
  • Certified by DEKRA GmbH - Marine and Cargo Survey
  • Veltkamp is a preferred supplier of the leading paper mills

Product Cargo Chock 125®
Type CC125
Content set 2 x Cargo Chock + 1 x Lashing
Article Number 6.045820
Specific Application especially for the damage-free transport of horizontal paper reels
makes nailing unnecessary
works faster and prevents damage to the rollers and loading deck
In accordance with VDI-2700 - 2021i
Patent number 20205546.3
Certificate Dekra system = 423/3226/ 1825723331
equipment = 226/35527/1825723331
Material Recycled Polypropylene Copo
Type Lashing 50 mm, Length 3.7 m, BS 5000 daN, certified
Required Antislip Mats under each Chock 1 mat of 800 x 150 x 3 mm, Dekra certified - minimum µd ≥ 0.65
Antislip Mats under each roll of paper 2 x 2 mats on top of each other = 6 mm thick
More environmentally friendly packaging 60 sets in a carton pallet box
Weight pallet, incl. pallet 518 pounds / 235 kg
Weight per set 7.16 pounds / 3.5 kg
Also available per set
single chocks for replacement
single connection straps for replacement
  • ▪ Previously, a loading deck was 4 cm thick - nowadays it is 2.5 cm
  • ▪ Consequence = insufficient grip - nailing is no longer allowed
  • ▪ Cargo Chock - CC125 = nailing is no longer necessary
  • ▪ Damage to Coils and Loading Deck is prevented
Also available with QR code

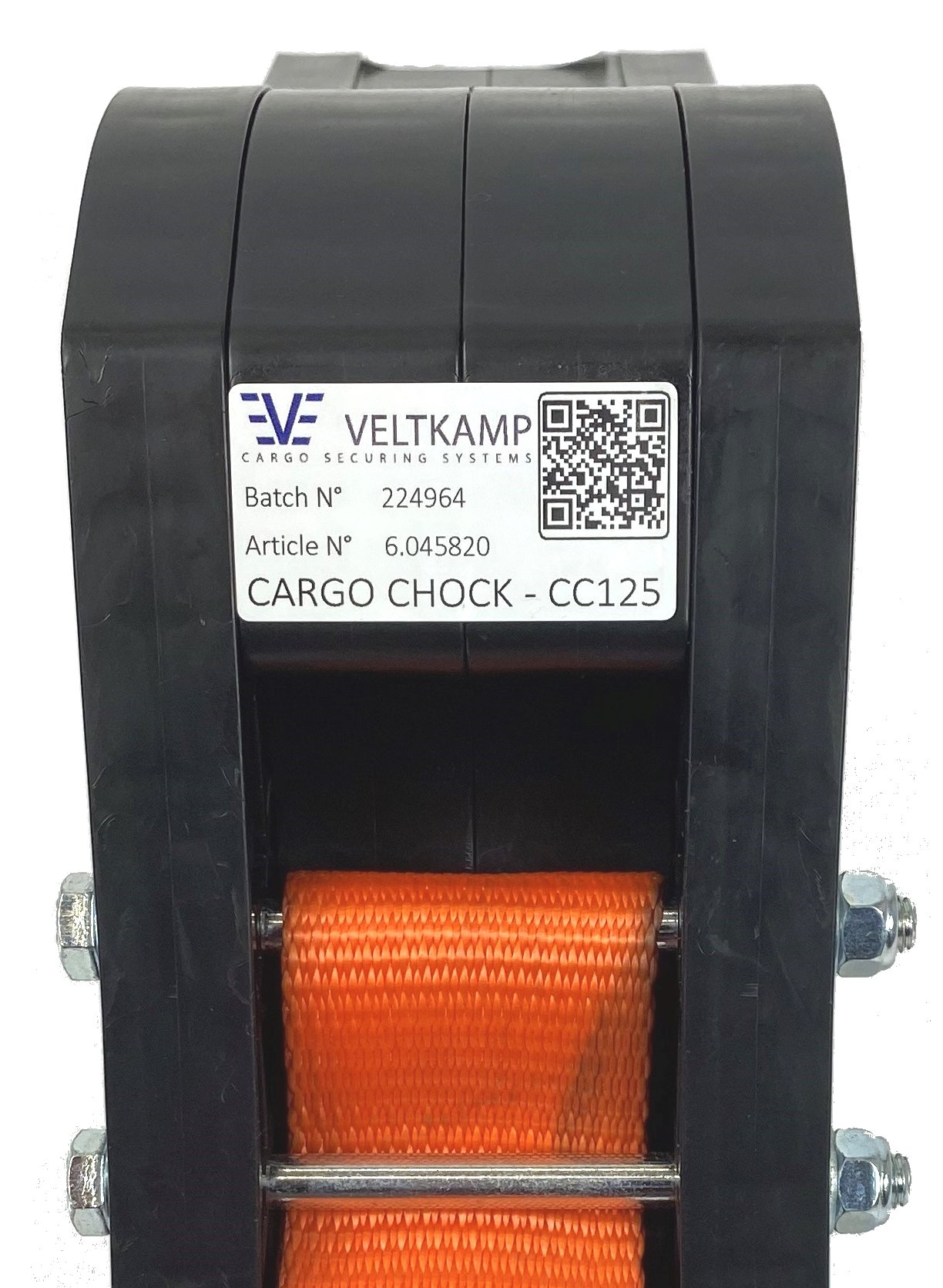

  • ▪ The CC125 can also be fitted with a QR code sticker
  • ▪ Certificates, instructions, etc. can be read easily and directly into a mobile phone
  • ▪ If desired, your company logo will be printed on the sticker
  • ▪ Your specific company data can also be processed in the QR code

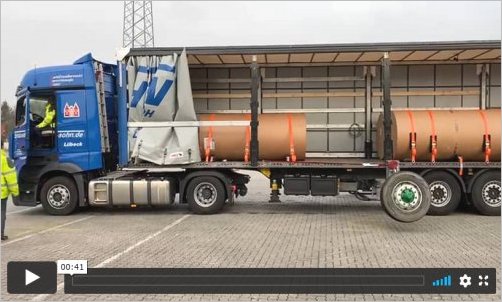

Instruction film - how to secure horizontal reels

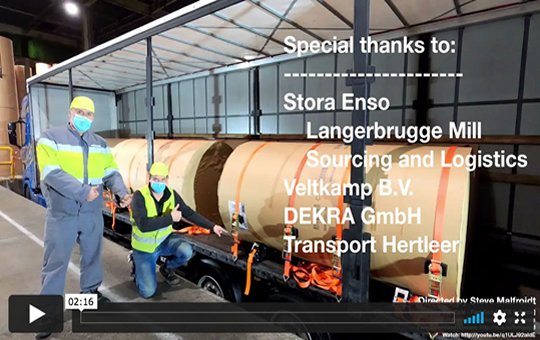

Dynamic test during certification by Dekra

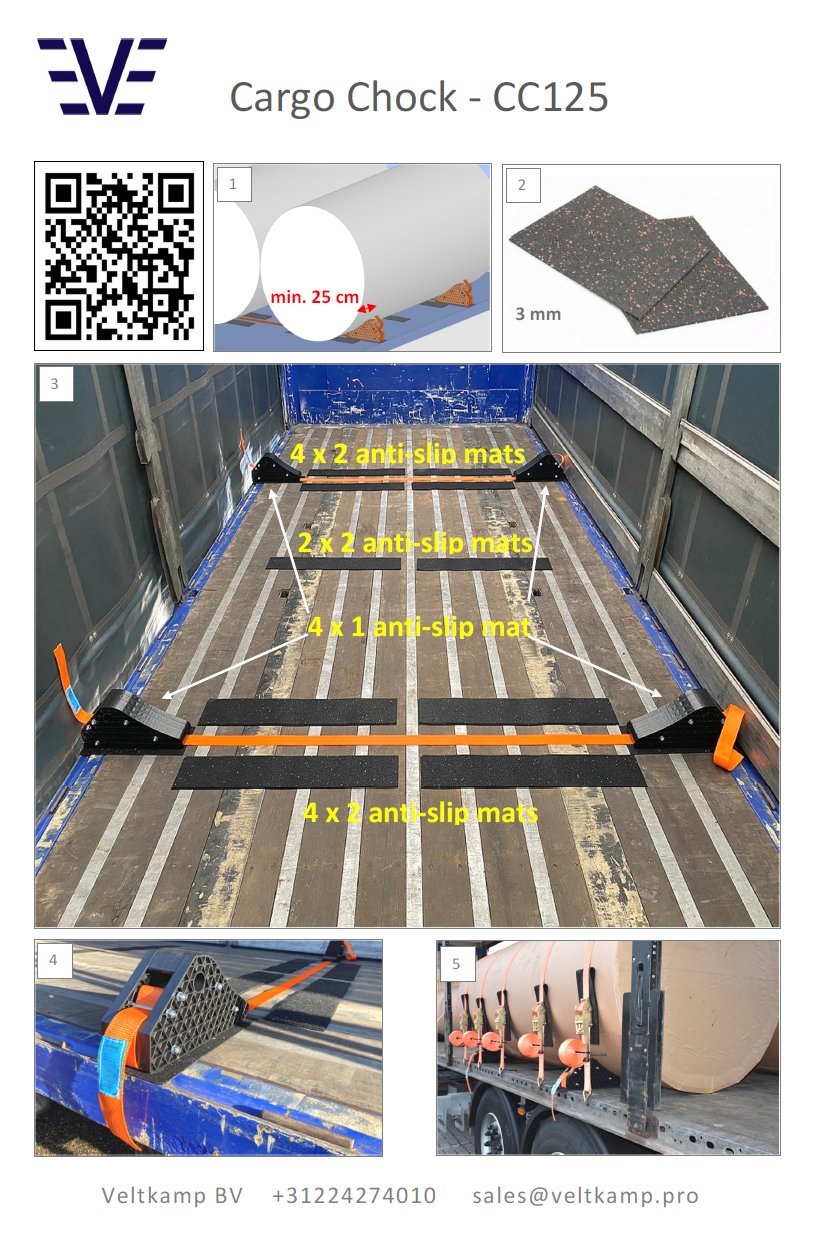

User Manual - for download
