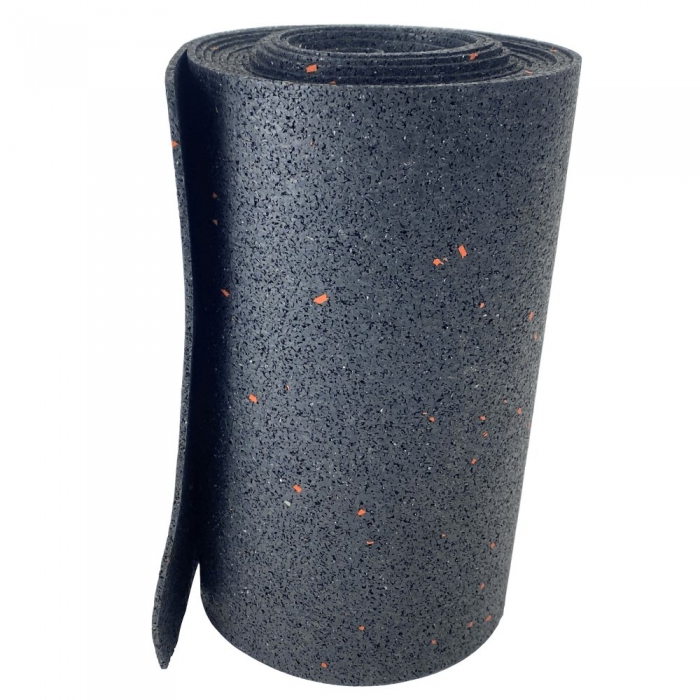

ANTI-SLIP COIL MATS
5,000 x 250 x 3 mm
ANTI-SLIP COIL MATS
5,000 x 250 x 3 mm
| Type | ASR3 - 5000x250 |
| Article Number | 30201628 |
| Dimensions | 5000 x 250 x 3 mm = 196.85 x 9.84 x 0.118 inches |
| Certified in accordance with standard | VDI 2700 sheet 14 |
| Certified by | DEKRA Automobil GmbH |
| Friction coefficient µD | wooden pallet / cargo deck = 0.70 |
| Test Certificate | 226/35527/703550/1822554023-1 |
| Friction coefficient µD | paper coil / cargo deck = 0.70 |
| Test Certificate | 226/35527/703550/1822554023-3 |
| To be applied in accordance with standard | VDI 2700 Sheet 15 |
| Elongation at break | 60 % (DIN EN ISO 1798) |
| Temperature resistance | -30 °C up to 100 °C = -20 °F up to 212 °F |
| Material | fine rubber granules, bound with PUR |
| Material class according to DIN 4102-1 | B2 |
| Specific characteristic | red grains |
| Important advantage | high density granulate = very long use duration |
| Quantity per pallet | 150 coils |
| Weight per coil | 2.74 kg = 6 pounds |
| Weight pallet, incl. pallet | 433 kg = 955 pounds |
| Tolerance dimensions | ± 1,5 % |
| Tolerance weights | ± 5 % |
